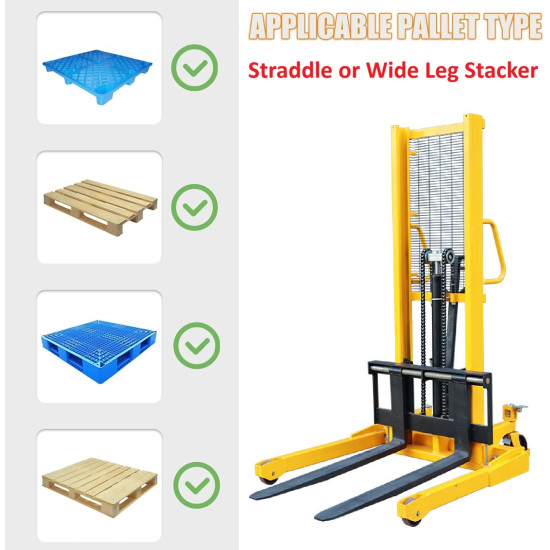

Semi-Electric Straddle Stacker 1500 kg (3300 lbs) 138" Lift

Semi-Electric Hydraulic Straddle Stacker 1500 kg (3300 lbs) 138" Lift

The Mexx Power Semi Electric Hydraulic Straddle Stacker boasts a lifting capacity of 1500 kg (3300 lbs) and a maximum lift height of 138 inches. With its innovative design combining hydraulic power and electric operation, this straddle offers efficient and reliable performance for a wide range of material handling tasks in industrial environments

Ideal for warehouses, distribution centers, and manufacturing facilities, this pallet stacker ensures efficient material handling while maximizing productivity. Manually push stacker with Hydraulic motor to raise and lower forks.

This model can lift any skid / pallet smaller than 52 inches in width!

Features:

The pallet straddle features a high-quality hydraulic power unit known for its swift response, stable operation, and extended service life.

Foot operated braking system, easy and fast foot brake operation.

The pallet straddle is equipped with a large 12V/120Ah maintenance Free battery.

This pallet straddle enables single-operator maneuvering in narrow aisles, congested areas, or stockrooms, enhancing efficiency in tight spaces.

Adopt high-precision heavy-duty hydraulic cylinder, the cylinder barrel and piston have super wear resistance, high-quality oil seal, good sealing performance, long service life

Hardened forged steel forks are made from high-quality steel that undergoes a forging process, which increases its strength and toughness. Forks are 45.5"L x 4"W x 1-1/4" thick.

Specifications:

• Load Capacity: 1,500Kg or 3,300Lb.
• Maximum Lift Height: 138" (11.5ft)
• Inner width of frame legs: 36-52 in
• Outer width of frame legs: 42-60 in
• Minimum forks height: 2.5 in
• Adjustable Forks: 10- 26 in
• Lifting Fork Length: 45.5 in
• Lifting Fork width: 4 in
• External Charger: 12V/15Ah
• Battery: 12V 120Ah
• Manual Push Drive
• Dimensions: 42.5 x 72 x 92 in
• Net Weight kg (lbs): 550 (1212)
